Merge and Remove and Repair and Split Mosaic Dataset Items Tools
Merge Mosaic Dataset Items
How to Merge Mosaic Dataset Items Tool in Arc Toolbox ArcMap ArcGIS??
 |
| Merge Mosaic Dataset Items |
Path to access the tool
:
Merge
Mosaic Dataset Items Tool, Mosaic Dataset Toolset,
Raster Box, Data Management Tools Toolbox
Merge Mosaic Dataset Items
Groups multiple items in
a mosaic dataset together as one item.
1. Mosaic Dataset
The mosaic dataset that
has the items that you want to merge.
2. Query Definition (optional)
An SQL expression to
select specific rasters to merge in the mosaic dataset.
3. Block Field (optional)
The field in the
attribute table that you want to use to group images. Only date, numeric, and
string fields can be specified as Block fields.
4. Maximum Allowed Rows Per Merged Item (optional)
Limits the number of
items to merge. If the maximum is exceeded, the tool will create multiple
merged items. The default is 1,000 rows.
Remove Rasters From Mosaic Dataset
How to Remove Rasters From Mosaic Dataset Tool in Arc Toolbox ArcMap ArcGIS??
 |
| Remove Rasters From Mosaic Dataset |
Path to access the tool
:
Remove
Rasters From Mosaic Dataset Tool, Mosaic Dataset Toolset,
Raster Box, Data Management Tools Toolbox
Remove Rasters From Mosaic Dataset
Removes selected raster
datasets from a mosaic dataset.
1. Mosaic Dataset
The mosaic dataset
containing the rasters you want to remove
2. Query Definition (optional)
An SQL expression to
select the raster datasets that you want removed from the mosaic dataset.
There must be a
selection or a query specified; otherwise, the tool will not run. If you want
to delete all the records from the mosaic dataset, specify a query that would
select all the rasters,
such as "OBJECTID>=0".
3. Delete Overview Images (optional)
Remove overviews associated with the selected rasters.
- Checked—Delete overviews associated with the selected rasters. This is the default.
- Unchecked—Do not delete the overviews associated with the selected rasters.
4. Delete Item Cache (optional)
Remove cache that is based on any source raster datasets that you are removing from the mosaic dataset.
- Checked—Remove the item and its corresponding cache. This is the default.
- Unchecked—Keep the cache as part of the mosaic dataset.
5. Update Cell Size Ranges (optional)
Update cell size ranges for the mosaic dataset. Choose this option if you are removing all of the imagery at a specific cell size.
- Checked—Update the cell size ranges. This is the default.
- Unchecked—Do not update the cell size ranges.
6. Update Boundary (optional)
Updates the boundary polygon of a mosaic dataset. By default, the boundary merges all the footprint polygons to create a single boundary representing the extent of the valid pixels.
- Checked—The boundary will be updated. This is the default.
- Unchecked—The boundary will not be updated.
7. Mark Affected Overviews (optional)
When the rasters in a mosaic catalog have been removed, any overviews created using those rasters may no longer be accurate; therefore, they can be identified so they can be updated or removed if they are no longer needed.
- Checked—The affected overviews will be identified. This is the default.
- Unchecked—The affected overviews will not be identified.
8. Remove Mosaic Dataset Items (optional)
Remove item, cache, overviews, and raster datasets. Or, remove only the cache and overviews, and keep the raster datasets.
- Checked—Remove the item from the mosaic dataset. This is the default.
- Unchecked—Remove the item cache and any associated overviews, but not the item itself.

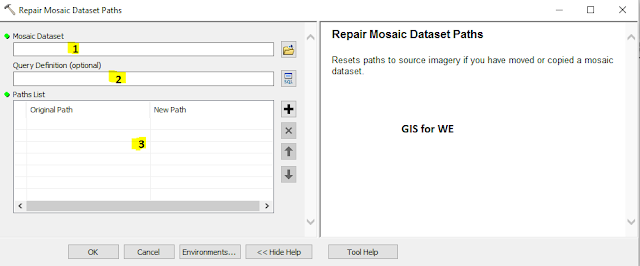

Repair Mosaic Dataset Paths
How to Repair Mosaic Dataset Paths Tool in Arc Toolbox ArcMap ArcGIS??
 |
| Repair Mosaic Dataset Paths |
Path to access the tool
:
Repair
Mosaic Dataset Paths Tool, Mosaic Dataset Toolset,
Raster Box, Data Management Tools Toolbox
Repair Mosaic Dataset Paths
Resets paths to source
imagery if you have moved or copied a mosaic dataset.
1. Mosaic Dataset
The mosaic dataset with
the broken paths.
2. Query Definition (optional)
An SQL expression to
limit the repairs to selected rasters within the mosaic dataset.
3. Paths List
A list of the paths to
remap. Include the current path stored in the mosaic dataset and the path to
which it will be changed. You can enter an asterisk (*) as the original path if
you wish to change all your paths.
Split Mosaic Dataset Items
How to Split Mosaic Dataset Items Tool in Arc Toolbox ArcMap ArcGIS??
 |
| Split Mosaic Dataset Items |
Path to access the tool
:
Split
Mosaic Dataset Items Tool, Mosaic Dataset Toolset,
Raster Box, Data Management Tools Toolbox
Split Mosaic Dataset Items
Splits mosaic dataset
items that were merged together using Merge Mosaic Dataset Items.
1. Mosaic Dataset
The mosaic dataset
containing the items to split.
2. Query Definition (optional)
An SQL expression to
select items to split.
If the query does not contain any previously merged items, the tool will return an error.
