Define Mosaic Dataset NoData and Overviews, Delete Mosaic Dataset, Edit Raster Function Tools
Define Mosaic Dataset NoData
How to Define Mosaic Dataset NoData Tool in Arc Toolbox ArcMap ArcGIS??
 |

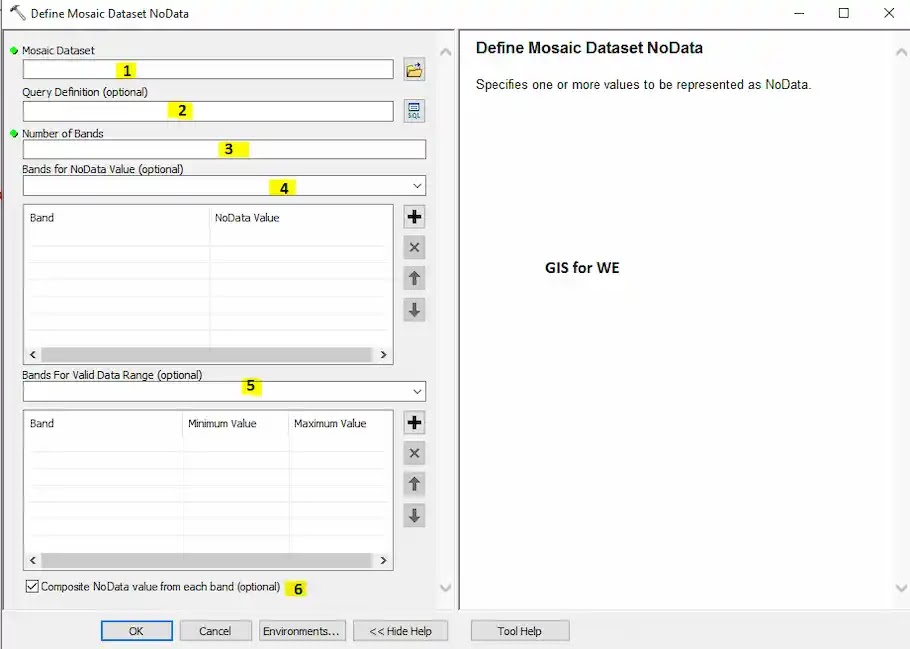

| Define Mosaic Dataset NoData |
Path to access the tool
:
Define
Mosaic Dataset NoData Tool, Mosaic Dataset Toolset,
Raster Box, Data Management Tools Toolbox
Define Mosaic Dataset NoData
Specifies one or more
values to be represented as NoData.
1. Mosaic Dataset
The mosaic dataset where
you want to update the NoData values.
2. Query Definition (optional)
An SQL statement to
select specific raster in the mosaic dataset. Only the selected rasters will
have their NoData values changed.
3. Number of Bands
The number of bands in
the mosaic dataset.
4. Bands for NoData Value (optional)
Specify the NoData value
for each band. Each band can have a unique NoData value defined, or you can use
the same value for all bands. Choose the band from the drop-down list and then
enter a value or multiple values. If you choose multiple NoData values,
separate each value with a space.
If the function chain
for each raster within the mosaic dataset contains the Composite Bands
function, or if your raster data was added with a raster type that adds the
Composite Bands function to each raster's function chain, then any value you
specify will apply to all bands.
5. Bands for Valid Data Range (optional)
Specify a range of
values to display for each band. Values outside of this range will be
classified as NoData.
When working with composite bands, the range will apply
to all bands.
6. Composite NoData value from each band (optional)
Choose whether all bands must be NoData in order for the pixel to be classified as NoData.
- Unchecked—If any band has pixels of NoData, then the pixel is classified as NoData. This is the default.
- Checked—All bands must have pixels of NoData for the pixel to be classified as NoData.
Define Overviews
How to Define Overviews Tool in Arc Toolbox ArcMap ArcGIS??
 |
| Define Overviews |
Path to access the tool
:
Define
Overviews Tool, Mosaic Dataset Toolset, Raster Box, Data Management Tools
Toolbox
Define Overviews
Lets you set how mosaic
dataset overviews are generated. The settings made with this tool are used by
the Build Overviews tool.
1. Mosaic Dataset
The mosaic dataset that
you want to build overviews on.
2. Output Location (optional)
The folder or
geodatabase to store the overviews.
3. Extent from Dataset (optional)
A raster dataset or
feature class to define the extent of the overviews.
4. Extent (optional)
Manually set the extent
using the following minimum and maximum x and y coordinates.
The mosaic dataset
boundary will determine the extent of the overviews if you do not define an
extent.
5. Pixel Size (optional)
If you prefer not to use
all the raster's pyramids, specify a base pixel size at which your overviews
will be generated.
The units for this
parameter are the same as the spatial reference of the mosaic dataset.
6. Number Of Levels (optional)
Specify the number of
levels of overviews that you want to generate overviews. A value of -1 will
determine an optimal value for you.
7. Number Of Rows (optional)
Set the number of rows
(in pixels) for each tile.
Larger values will
result in fewer, larger individual overviews, and increase the likelihood that
you will need to regenerate lower level overviews. A smaller value will result
in more, smaller files.
8. Number Of Columns (optional)
Set the number of
columns (in pixels) for each tile.
Larger values will
result in fewer,
larger individual overviews, and increase the likelihood that
you will need to regenerate lower level overviews. A smaller value will result
in more, smaller files.
9. Overview Sampling Factor (optional)
Set a ratio to determine
the size of the next overview. For example, if the cell size of the first level
is 10, and the overview factor is 3, then the next overview pixel size will be
30.
10. Force Overview Tiles (optional)
Generate overviews at all levels, or only above existing pyramid levels.
- Unchecked—Create overviews above the raster pyramid levels. This is the default.
- Checked—Create overviews at all levels.
11. Resampling Method (optional)
Choose an algorithm for aggregating pixel values in the overviews.
- NEAREST— The fastest resampling method because it minimizes changes to pixel values. Suitable for discrete data, such as land cover. If the Key Metadata Data Type is thematic, then nearest neighbor will be the default.
- BILINEAR—Calculates the value of each pixel by averaging (weighted for distance) the values of the surrounding 4 pixels. Suitable for continuous data.This is the default, unless the Key Metadata Data Type is thematic.
- CUBIC— Calculates the value of each pixel by fitting a smooth curve based on the surrounding 16 pixels. Produces the smoothest image, but can create values outside of the range found in the source data. Suitable for continuous data.
12. Compression Method (optional)
Define the type of data compression to store the overview images.
- JPEG—A lossy compression. This is the default, unless the Key Metadata Data Type is thematic. This compression method is only valid if the mosaic dataset items adhere to JPEG specifications.
- JPEG_YCbCr—A lossy compression using the luma (Y) and chroma (Cb and Cr) color space components.
- None—No data compression.
- LZW—A lossless compression. If the Key Metadata Data Type is thematic, then nearest neighbor will be the default.
13. Compression Quality (optional)
Choose a value from 1 - 100. Higher values generate better quality
outputs, but they create larger files.
Delete Mosaic Dataset
How to Delete Mosaic Dataset Tool in Arc Toolbox ArcMap ArcGIS??
 |
| Delete Mosaic Dataset |
Path to access the tool
:
Delete
Mosaic Dataset Tool, Mosaic Dataset Toolset,
Raster Box, Data Management Tools Toolbox
Delete Mosaic Dataset
Deletes a mosaic
dataset, its overviews, and its item cache from disk.
1. Mosaic Dataset
The mosaic dataset that
you want to delete.
2. Delete Overview Images (optional)
Deletes all overviews associated with the mosaic dataset.
- Checked—Delete the overviews associated with the mosaic dataset. This is the default.
- Unchecked—Do not delete the overviews.
3. Delete Item Cache (optional)
Delete the item cache associated with the mosaic dataset.
- Checked—Delete the item cache associated with the mosaic dataset. This is the default.
- Unchecked—Do not delete the item cache.
Edit Raster Function
How to Edit Raster Function Tool in Arc Toolbox ArcMap ArcGIS??
 |
| Edit Raster Function |
Path to access the tool
:
Edit
Raster Function Tool, Mosaic Dataset Toolset, Raster Box, Data Management Tools
Toolbox
Edit Raster Function
Adds, replaces, or
removes a function chain in a mosaic dataset or a raster layer that contains a
raster function.
1. Input Raster
The mosaic dataset or a
raster layer. If you use a raster layer, it must have a function applied.
2. Mosaic Dataset Items (optional)
Applies the function chain to every item in the mosaic dataset individually or to the mosaic dataset as a whole.
- Unchecked—Edits affect the functions associated with the mosaic dataset. This is the default.
- Checked—Edits affect the functions associated with all of the items within the mosaic dataset.
3. Edit Options (optional)
Insert, replace, or remove a function chain.
- INSERT—Insert the function chain above the Function Name of the existing chain. Specify the function chain below in the Function Name parameter. This is the default.
- REPLACE—Replace the existing function chain with the function chain specified in this tool. Specify the function chain below in the Function Name parameter.
- REMOVE— Remove the function chain starting from the function specified in the Function Name parameter.
4. Raster Function Template (optional)
Choose the function
chain (rft.xml file) that you want to insert or replace.
5. Function Name (optional)
Choose where to insert,
replace, or remove the function chain within the existing function chain.
If you Insert the function, it will be inserted above the function specified in the Function Name parameter.
