Reconcile Versions, Register and Unregister as Versioned, Remove Field Conflict Filter

Husam Jubeh
(0)

Reconcile Versions, Register and Unregister as Versioned, Remove Field Conflict Filter Tools

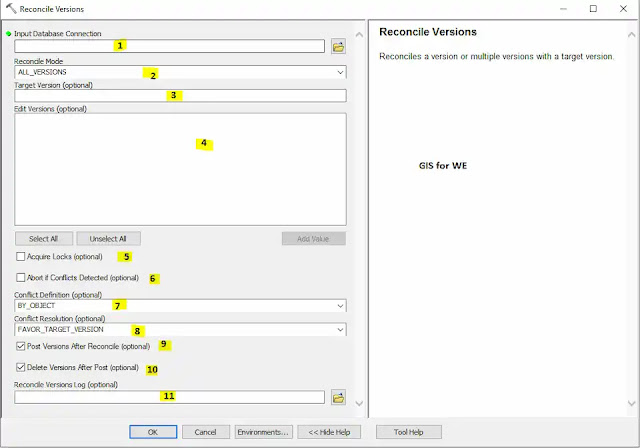

Reconcile Versions

How to Reconcile Versions Tool in Arc Toolbox ArcMap ArcGIS??

Reconcile Versions Tool
Reconcile Versions

Path to access the tool

:

Reconcile Versions Tool, Versions Toolset, Data Management Tools Toolbox



Reconcile Versions

Reconciles a version or multiple versions with a target version.

1.    Input Database Connection

The enterprise geodatabase that contains the versions to be reconciled.

2.    Reconcile Mode

Specifies the versions that will be reconciled when the tool is executed.

  1. ALL_VERSIONS—Reconciles edit versions with the target version. This is the default.
  2. BLOCKING_VERSIONS—Reconciles versions that are blocking the target version from compressing. This option uses the recommended reconcile order.

3.    Target Version (optional)

The name of any version in the direct ancestry of the edit version, such as the parent version or the default version.

It typically contains edits from other versions that you want included in your edit version.

4.    Edit Versions (optional)

The name of the edit version or versions to be reconciled with the selected target version.

Only versions that are in the direct ancestry of the selected target version will be displayed.

5.    Acquire Locks (optional)

Specifies whether feature locks will be acquired.

  1. Checked—Locks will be acquired during the reconcile process. Use this option when the intention is to post edits. It ensures that the target version is not modified in the time between the reconcile and post operations. This is the default.
  2. Unchecked—Locks are not acquired during the reconcile process. This allows multiple users to reconcile in parallel. Use this option when the edit version will not be posted to the target version because there is a possibility that the target version may be modified in the time between the reconcile and post operations.

6.    Abort if Conflicts Detected (optional)

Specifies whether the reconcile process will be aborted if conflicts are found between the target version and the edit version during the reconcile process.

  1. Checked—The reconcile will be aborted if conflicts are found.
  2. Unchecked—The reconcile will not be aborted if conflicts are found. This is the default.

7.    Conflict Definition (optional)

Specifies whether the conditions required for a conflict to occur are defined by object (row) or by attribute (column).

  1. BY_OBJECT—Any changes to the same row or feature in the parent and child versions will conflict during reconcile. This is the default.
  2. BY_ATTRIBUTE—Only changes to the same attribute (column) of the same row or feature in the parent and child versions will be flagged as a conflict during reconcile. Changes to different attributes will not be considered a conflict during reconcile.

8.    Conflict Resolution (optional)

Specifies the resolution if a conflict is detected.

  1. FAVOR_TARGET_VERSION—All conflicts will be resolved in favor of the target version. This is the default.
  2. FAVOR_EDIT_VERSION—All conflicts will be resolved in favor of the edit version.

9.    Post Versions After Reconcile (optional)

Specifies whether the current edit session will be posted to the reconciled target version.

  1. Checked—The current edit version will be posted to the target version after the reconcile.
  2. Unchecked—The current edit version will not be posted to the target version after the reconcile. This is the default.

10. Delete Versions After Post (optional)

Specifies whether the reconciled edit version will be deleted after posting. This parameter only applies if the Post Versions After Reconcile parameter is checked.

  1. Checked—The current edit version that was reconciled will be deleted after being posted to the target version.
  2. Unchecked—The current edit version that was reconciled will not be deleted. This is the default.

11. Reconcile Versions Log (optional)

The name and location where the log file will be written. The log file is an ASCII file containing the contents of the geoprocessing messages.

Register as Versioned

How to Register as Versioned Tool in Arc Toolbox ArcMap ArcGIS??

Register as Versioned Tool
Register as Versioned

Path to access the tool

:

Register as Versioned Tool, Versions Toolset, Data Management Tools Toolbox



Register as Versioned

Registers an enterprise, workgroup, or desktop geodatabase dataset as versioned.

1.    Input Dataset

The dataset to be registered as versioned.

2.    Register the selected objects with the option to move edits to base (optional)

Specifies whether edits made to the default version will be moved to the base tables.

  1. Checked—The dataset will be versioned with the option of moving edits to base.
  2. Unchecked—The dataset will be versioned without the option of moving edits to base. This is the default.

Remove Field Conflict Filter

How to Remove Field Conflict Filter Tool in Arc Toolbox ArcMap ArcGIS??

Remove Field Conflict Filter Tool
Remove Field Conflict Filter

Path to access the tool

:

Remove Field Conflict Filter Tool, Versions Toolset, Data Management Tools Toolbox



Remove Field Conflict Filter

Removes a field conflict filter for a given field in a geodatabase table or feature class.

Field conflict filters can be applied to versioned tables or feature classes to prevent conflicts from being identified when the same attribute is updated in the parent and child versions. Field conflict filters only apply for reconciles in which conflicts are defined by attribute.

1.    Input Table

Table or feature class containing the field or fields to be removed as conflict filters.

2.    Field Name(s)

Field or list of fields to be removed as conflict filters.

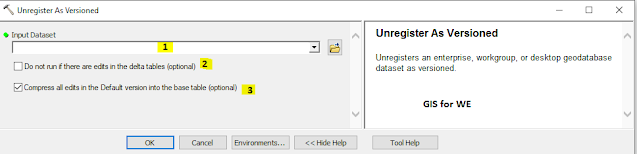

Unregister as Versioned

How to Unregister as Versioned Tool in Arc Toolbox ArcMap ArcGIS??

Unregister as Versioned Tool
Unregister as Versioned

Path to access the tool

:

Unregister as Versioned Tool, Versions Toolset, Data Management Tools Toolbox



Unregister as Versioned

Unregisters an enterprise, workgroup, or desktop geodatabase dataset as versioned.

1.    Input Dataset

The name of the dataset to be unregistered as versioned.

2.    Do not run if there are edits in the delta tables (optional)

Specifies whether edits made to the versioned data will be maintained.

  1. Checked—If there are existing edits in the delta tables, the tool will fail with an error message. Do not use this option if you intend to compress your edits from the Default version in the Compress all edits in the Default version into the base table parameter. This is the default.
  2. Unchecked—If there are existing edits in the delta tables, the tool will allow deletion of these edits. Use this option if you intend to compress your edits from the Default version in the Compress all edits in

3.    Compress all edits in the Default version into the base table (optional)

Specifies whether edits will be compressed and unused data will be removed. This option is ignored if the Do not run if there are edits in the delta tables parameter is checked.

  1. Checked—Edits in the Default version will be compressed to the base table.
  2. Unchecked—Any edits remaining in the delta tables will not be compressed. This is the default.
  3. the Default version into the base table parameter.
