Create Feature Dataset and File and Personal GDB and Folder and Spatial Type and SQLite Database Tools
Create Feature Dataset
How to Create Feature
Dataset Tool in Arc Toolbox ArcMap ArcGIS??
Create Feature Dataset
Path to access the tool
:
Create
Feature Dataset Tool, Workspace Toolset, Data
Management Tools Toolbox

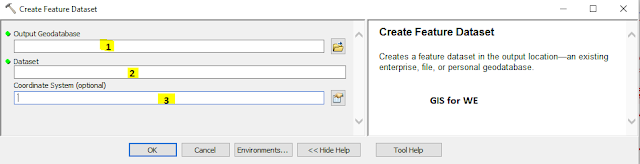

Create Feature Dataset
Creates a feature dataset in the output location—an existing enterprise, file, or personal geodatabase.
1. Output Geodatabase
The enterprise, file
geodatabase, or personal geodatabase in which the output feature dataset will
be created.
2. Dataset
The name of the feature
dataset to be created.
3. Coordinate System (optional)
The spatial reference of
the output feature dataset. On the Spatial Reference Properties dialog box, you
can select, import, or create a new coordinate system. To set aspects of the
spatial reference,
such as the x,y-, z-, or m-domain, resolution, or tolerance,
use the Environments dialog box.
Create File GDB
How to Create File GDB Tool in Arc Toolbox ArcMap ArcGIS??
Create File GDB
Path to access the tool
:
Create
File GDB Tool, Workspace Toolset, Data Management Tools Toolbox
Create File GDB
Creates a file
geodatabase in a folder.
1. File GDB Location
The folder where the
file geodatabase will be created.
2. File GDB Name
The name of the file
geodatabase to be created.
3. File GDB Version (optional)
The ArcGIS version for the new geodatabase.
- CURRENT—Creates a geodatabase compatible with the currently installed version of ArcGIS. This is the default.
- 10.0 —Creates a geodatabase compatible with ArcGIS version 10.
- 9.3—Creates a geodatabase compatible with ArcGIS version 9.3.
- 9.2—Creates a geodatabase compatible with ArcGIS version 9.2.
Create Folder
How to Create Folder Tool in Arc Toolbox ArcMap ArcGIS??
Create Folder
Path to access the tool
:
Create
Folder Tool, Workspace Toolset,
Data Management Tools Toolbox
Create Folder
Creates a folder in the
specified location.
1. Folder Location
The disk location where
the folder is created.
2. Folder Name
The folder to be
created.
Create Personal GDB
How to Create Personal GDB Tool in Arc Toolbox ArcMap ArcGIS??
Create Personal GDB
Path to access the tool
:
Create
Personal GDB Tool, Workspace Toolset, Data
Management Tools Toolbox
Create Personal GDB
Creates a personal
geodatabase in a folder.
1. Personal GDB Location
Location (folder) where
the personal geodatabase will be created.
2. Personal GDB Name
Name of the geodatabase
to be created.
3. Personal GDB Version (optional)
The ArcGIS version for the geodatabase to be created.
- CURRENT—Creates a geodatabase compatible with the currently installed version of ArcGIS
- 10.0—Creates a geodatabase compatible with ArcGIS version 10
- 9.3—Creates a geodatabase compatible with ArcGIS version 9.3
- 9.2—Creates a geodatabase compatible with ArcGIS version 9.2
- 9.1—Creates a geodatabase compatible with ArcGIS version 9.1
Create Spatial Type
How to Create Spatial Type Tool in Arc Toolbox ArcMap ArcGIS??
Create Spatial Type
Path to access the tool
:
Create
Spatial Type Tool, Workspace Toolset, Data
Management Tools Toolbox
Create Spatial Type
Adds the ST_Geometry SQL
type, subtypes, and functions to an Oracle or a PostgreSQL database. This
allows you to use the ST_Geometry SQL type to store geometries in a database
that does not contain a geodatabase. You can also use this tool to upgrade the
existing ST_Geometry type, subtypes,
and functions in an Oracle or a PostgreSQL
database.
1. Input Database Connection
The input_database is
the database connection file (.sde) that connects to the Oracle or PostgreSQL
database. You must connect as a database administrator user; in Oracle, you
must connect as the sys user.
2. SDE User Password
The password for the sde
database user. If the sde user does not exist in the database, it will be
created and will use the password you provide. The password policy of the
underlying database will be enforced. If the sde user already exists in the
database or database cluster, this password must match the existing password.
3. Tablespace Name (optional)
For Oracle, you can
provide the name for a tablespace to be set as the default tablespace for the
sde user. If the tablespace does not already exist, it will be created in the
Oracle default storage location. If a tablespace with the specified name already
exists, it will be set as the sde user's default.
4. ST_Geometry Shape Library Path (optional)
For Oracle, provide the
location on the Oracle server where you placed the st_shape library. If you run
the Create Spatial Type tool on the server where Oracle is installed, the
Library Path field is automatically populated with the location of the DatabaseSupport
folder in the ArcGIS Desktop installation directory. If you run the tool from a
remote machine, the ST_Geometry Shape Library Path field is blank by default,
you must provide the location on the Oracle server where the library resides.
Create SQLite Database
How to Create SQLite
Database Tool in Arc Toolbox ArcMap ArcGIS??
Create SQLite Database
Path to access the tool
:
Create
SQLite Database Tool, Workspace Toolset, Data
Management Tools Toolbox
Create SQLite Database
Creates an ST_Geometry,
a SpatiaLite, or a GeoPackage database.
1. Output Database Name
Location of the SQLite
database to be created and the name of the SQLite database file.
An extension
of .sqlite will be automatically assigned if the Spatial Type is ST_Geometry or
SpatiaLite. If the Spatial Type is GeoPackage, a .gpkg extension is
automatically assigned.
2. Spatial Type (optional)
The spatial type to install with the new SQLite database.
- ST_GEOMETRY—Esri's spatial storage type. This is the default.
- SPATIALITE—SpatiaLite spatial storage type.
- GEOPACKAGE— OGC GeoPackage dataset. Creates a GeoPackage 1.2.1 dataset.
- GEOPACKAGE_1.0—OGC GeoPackage 1.0 dataset.
- GEOPACKAGE_1.1—OGC GeoPackage 1.1 dataset.
- GEOPACKAGE_1.2—OGC GeoPackage 1.2.1 dataset.
