Inside 3D, Intersect 3D and Line With Multipatch
Inside 3D
How
to use Inside 3D Tool in ArcToolbox ArcMap ArcGIS ??
 |
| Inside 3D |
Inside 3D Tool, 3D Features Toolset, 3D Analyst Toolbox
Inside 3D
Determines if 3D
features from an input feature class are contained inside a closed multipatch,
and writes an output table recording the features that are partially or fully
inside the multipatch.

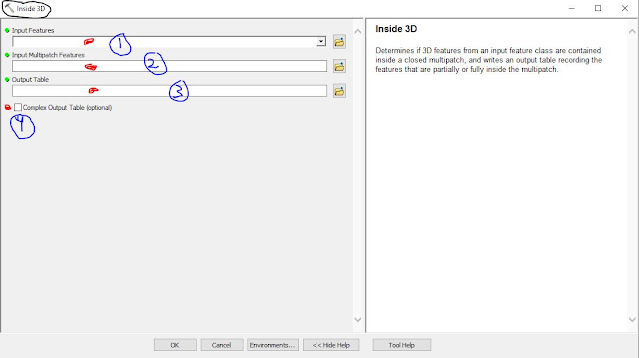

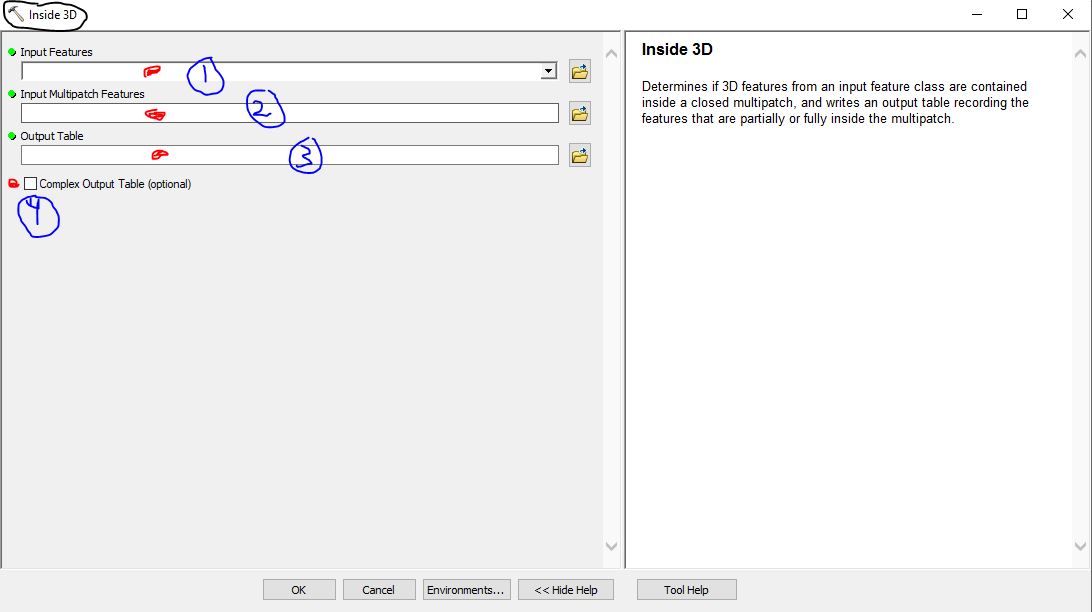

1. Input Features
The input multipatch or
3D point, line, or polygon feature class.
2. Input Multipatch Features
The closed multipatch
features that will be used as the containers for the input features.
3. Output Table
The output table
providing a list of 3D Input Features that are inside or partially inside the
Input Multipatch Features which are closed. The output table contains an
OBJECTID (object ID), Target_ID, and Status field. The Status field will state
if the input feature (Target_ID) is inside or partially inside a multipatch.
4. Complex Output Table (optional)
Specifies if the output
table will identify the relationship between the Input Features and the Input
Multipatch Features through the creation of a Contain_ID field that identifies
the multipatch feature that contains the input feature.
·
Checked—The multipatch feature that contains an input feature will
be identified.
· Unchecked—The multipatch feature that contains an input feature will not be identified. This is the default.
Intersect 3D
How
to use Intersect 3D Tool in ArcToolbox ArcMap
ArcGIS ??
 |
| Intersect 3D |
Intersect 3D Tool, 3D Features Toolset, 3D Analyst Toolbox
Intersect 3D
Computes the
intersection of multipatch features to produce closed multipatches encompassing
the overlapping volumes, open multipatch features from the common surface
areas, or lines from the intersecting edges.
1. Input Multipatch Features
The multipatch features
that will be intersected. When only one input feature layer or feature class is
provided, the output will indicate the intersection of its own features.
2. Input Multipatch Features (optional)
The optional second
multipatch feature layer or feature class to be intersected with the first.
3. Output Feature Class
The feature class that
will be produced by this tool.
4. Output Geometry Type (optional)
Determines the type of
intersection geometry created.
·
SOLID—Creates a closed multipatch representing the overlapping
volumes between input features. This is the default.
·
SURFACE—Creates a multipatch surface representing shared faces
between input features.
· LINE— Creates lines representing shared edges between input features.
Intersect 3D Line With Multipatch
 |
| Intersect 3D Line With Multipatch |
Intersect 3D Line With Multipatch Tool, 3D Features Toolset, 3D Analyst Toolbox
Intersect 3D Line With Multipatch
Returns the number of
geometric intersections between 3D line and multipatch features and also
provides optional features that represent points of intersection and also
divide the 3D lines at such points.
1. Input Line Features
The line features that
will be intersected with the multipatch features.
2. Input Multipatch Features
The multipatch features
that the lines will be intersected against.
3. Join Attributes (optional)
The input line feature
attributes that will be stored with the optional output features.
·
IDS_ONLY— Only feature identification numbers will be stored. This
is the default.
·
ALL—All attributes will be stored.
4. Output Points (optional)
Optional features that represent points of
intersection between the 3D line and multipatch.
5. Output Lines (optional)
Optional line features that divide the input lines at each point of intersection with a multipatch feature
