Create Spatially Balanced Points, Densify Sampling Network, Extract Values to Table and Gaussian Geostatistical Simulations

Create Spatially Balanced Points, Densify Sampling Network, Extract Values to Table and Gaussian Geostatistical Simulations Tools

Create Spatially Balanced Points

How to use Create Spatially Balanced Points Tool in Arc Toolbox ArcMap ArcGIS??

Create Spatially Balanced Points Tool
Create Spatially Balanced Points

Path to access the tool

:

Create Spatially Balanced Points Tool, Sampling Network Design Toolset, Geostatistical Analyst Tools Toolbox



Create Spatially Balanced Points

Generates a set of sample points based on inclusion probabilities, resulting in a spatially balanced sample design. This tool is generally used for designing a monitoring network by suggesting locations to take samples, and a preference for particular locations can be defined using an inclusion probability raster.

1.    Input inclusion probability raster

This raster defines the inclusion probabilities for each location in the area of interest. The location values range from 0 (low inclusion probability) to 1 (high inclusion probability).

2.    Number of output points

Specify how many sample locations to generate.

3.    Output point feature class

The output feature class contains the selected sample locations and their inclusion probabilities.

Densify Sampling Network

How to use Densify Sampling Network Tool in Arc Toolbox ArcMap ArcGIS??

Densify Sampling Network Tool
Densify Sampling Network

Path to access the tool

:

Densify Sampling Network Tool, Sampling Network Design Toolset, Geostatistical Analyst Tools Toolbox



Densify Sampling Network

Uses a predefined geostatistical kriging layer to determine where new monitoring stations should be built. It can also be used to determine which monitoring stations should be removed from an existing network.

1.    Input geostatistical layer

Input a geostatistical layer resulting from a Kriging model.

2.    Number of output points

Specify how many sample locations to generate.

3.    Output point feature class

The name of the output feature class.

4.    Selection criteria (optional)

Methods to densify a sampling network.

  1. STDERR—Standard error of prediction criteria
  2. STDERR_THRESHOLD—Standard error threshold criteria
  3. QUARTILE_THRESHOLD — Lower quartile threshold criteria
  4. QUARTILE_THRESHOLD_UPPER — Upper quartile threshold criteria

The Standard error of prediction option will give extra weight to locations where the standard error of prediction is large. The Standard error threshold, Lower quartile threshold, and Upper quartile threshold options are useful when there is a critical threshold value for the variable under study (such as the highest admissible ozone level). The Standard error threshold option will give extra weight to locations whose values are close to the threshold. The Lower quartile threshold option will give extra weight to locations that are least likely to exceed the critical threshold. The Upper quartile threshold option will give extra weight to locations that are most likely to exceed the critical threshold.

The equations for each option are:

Standard error of prediction = stderr



 Standard error threshold = stderr(s)(1 - 2 · abs(prob[Z(s) > threshold] - 0.5))



 Lower quartile threshold = (Z0.75(s) - Z0.25(s)) · (prob[Z(s) < threshold])



 Upper quartile threshold = (Z0.75(s) - Z0.25(s)) · (prob[Z(s) > threshold])



5.    Threshold value (optional)

The threshold value used to densify the sampling network.

This parameter is only applicable when STDERR_THRESHOLD, QUARTILE_THRESHOLD, or QUARTILE_THRESHOLD_UPPER selection criteria is used.

6.    Input weight raster (optional)

A raster used to determine which locations to weight for preference.

7.    Input candidate point features (optional)

Sample locations to pick from.

8.    Inhibition distance (optional)

Used to prevent any samples being placed within this distance from each other.

Extract Values to Table

How to use Extract Values to Table Tool in Arc Toolbox ArcMap ArcGIS??

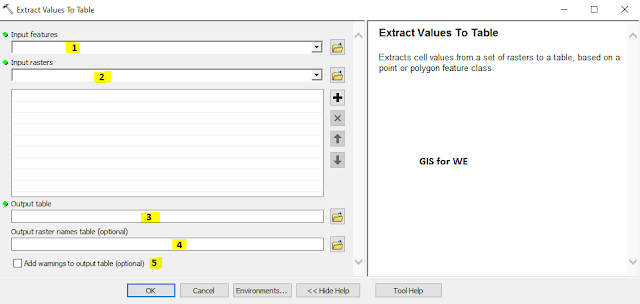

Extract Values to Table Tool
Extract Values to Table

Path to access the tool

:

Extract Values to Table Tool, Simulation Toolset, Geostatistical Analyst Tools Toolbox



Extract Values to Table

Extracts cell values from a set of rasters to a table, based on a point or polygon feature class.

1.    Input features

The points or polygon features to be created.

2.    Input rasters

The rasters must all have the same extent, coordinate system, and cell size.

3.    Output table

The output table contains a record for each point and each raster that has data. If polygon features are input, they are converted to points that coincide with the raster cell centers.

4.    Output raster names table (optional)

Saves the names of the Input rasters to disc.

5.    Add warnings to output table (optional)

Records if input features are partially or completely covered by the Input rasters.

  1. Checked—Warning field is added to the output table and populated with a P when a feature is partially covered by raster values.
  2. Unchecked—Warning field is not added to the output table.

Gaussian Geostatistical Simulations

How to use Gaussian Geostatistical Simulations Tool in Arc Toolbox ArcMap ArcGIS??

Gaussian Geostatistical Simulations Tool
Gaussian Geostatistical Simulations

Path to access the tool

:

Gaussian Geostatistical Simulations Tool, Simulation Toolset, Geostatistical Analyst Tools Toolbox



Gaussian Geostatistical Simulations

Performs a conditional or unconditional geostatistical simulation based on a Simple Kriging model. The simulated rasters can be considered equally probable realizations of the kriging model.

1.    Input geostatistical layer

Input a geostatistical layer resulting from a Simple Kriging model.

2.    Number of realizations

The number of simulations to perform.

3.    Output workspace

Stores all the simulation results. The workspace can be either a folder or a geodatabase.

4.    Output simulation prefix

A one- to three-character alphanumeric prefix that is automatically added to the output dataset names.

5.    Input conditioning features (optional)

The features used to condition the realizations. If left blank, unconditional realizations are produced.

6.    Conditioning field (optional)

The field used to condition the realizations. If left blank, unconditional realizations are produced.

7.    Conditioning measurement error field (optional)

A field that specifies the measurement error for each input point in the conditioning features. For each conditioning feature, the value of this field should correspond to one standard deviation of the measured value of the feature. Use this field if the measurement error values are not the same at each sampling location.

A common source of nonconstant measurement error is when the data is measured with different devices. One device might be more precise than another, which means that it will have a smaller measurement error. For example, one thermometer rounds to the nearest degree and another thermometer rounds to the nearest tenth of a degree. The variability of measurements is often provided by the manufacturer of the measuring device, or it may be known from empirical practice.

Leave this parameter blank if there are no measurement error values or the measurement error values are unknown.

8.    Output cell size (optional)

The cell size at which the output raster will be created.

This value can be explicitly set under Raster Analysis from the Environment Settings.

If not set, it is the shorter of the width or the height of the extent of the input point features, in the input spatial reference, divided by 250.

9.    Input bounding features (optional)

Limits the analysis to these features' bounding polygon. If point features are entered, then a convex hull polygon is automatically created. Realizations are then performed within that polygon. If bounding features are supplied, any features or rasters supplied in the Mask environment will be ignored.

10. Save simulated rasters (optional)

Specifies whether or not the simulated rasters are saved to disk.

Checked—Indicates that the simulated rasters will be saved to disk.

Unchecked—Indicates that the simulated rasters will not be saved to disk.

11. Quantile (optional)

The quantile value for which the output raster will be generated.

12. Threshold (optional)

The threshold value for which the output raster will be generated, as the percentage of the number of times the set threshold was exceeded, on a cell-by-cell basis.

13. Input statistical polygons (optional)

These polygons represent areas of interest for which summary statistics are calculated.

If statistical polygons are provided, the output polygon feature class will be saved in the Output workspace, and it will have the same name as the input polygons, preceded by the Output simulation prefix. For example, if the input statistical polygons were named myPolys and you entered aaa as the output prefix, then the output polygons will be named aaamyPolys, and will be saved in the specified output workspace.

14. Raster statistics type (optional)

The simulated rasters are postprocessed on a cell-by-cell basis, and each selected statistics type is calculated and reported in an output raster.

  1. MIN—Calculates the minimum (smallest value).
  2. MAX—Calculates the maximum (largest value).
  3. MEAN—Calculates the mean (average).
  4. STDDEV—Calculates the standard deviation.
  5. QUARTILE1—Calculates the 25th quantile.
  6. MEDIAN—Calculates the median.
  7. QUARTILE3—Calculates the 75th quantile.
  8. QUANTILE—Calculates a user-specified quantile (0 < Q < 1).
  9. P_THRSHLD —Calculates the percentage of the simulations where the cell value exceeds a user-specified threshold value.
