Add Feature Class and Rule and Create Topology, Export Topology Errors Tools
Add Feature Class to Topology
How to Add Feature Class to
Topology Tool in Arc Toolbox ArcMap ArcGIS??
Add Feature Class to Topology
Path to access the tool
:
Add
Feature Class to Topology Tool, Topology Toolset,
Data Management Tools Toolbox
Add Feature Class to Topology
Adds a feature class to
a topology.
1. Input Topology
The topology to which
the feature class will participate.
2. Input Feature class
The feature class to add
to the topology. The feature class must be in the same feature dataset as the
topology.
3. XY Rank
The relative degree of
positional accuracy associated with vertices of features in the feature class
versus those in other feature classes participating in the topology. The
feature class with the highest accuracy should get a higher rank (lower number,
for example, 1)
than a feature class which is known to be less accurate.
4. Z Rank
Feature classes that are
z-aware have elevation values embedded in their geometry for each vertex. By
setting a z rank, you can influence how vertices with accurate z-values are
snapped or clustered with vertices that contain less accurate z measurements.

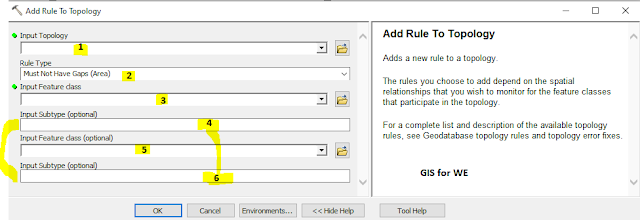

Add Rule to Topology
How to Add Rule to Topology Tool in Arc Toolbox ArcMap ArcGIS??
Add Rule to Topology
Path to access the tool
:
Add
Rule to Topology Tool, Topology Toolset, Data
Management Tools Toolbox
Add Rule to Topology
Adds a new rule to a
topology.
The rules you choose to
add depend on the spatial relationships that you wish to monitor for the
feature classes that participate in the topology.
For a complete list and
description of the available topology rules, see Geodatabase topology rules and
topology error fixes.
1. Input Topology
The topology to which
the new rule will be added.
2. Rule Type
The topology rule to be
added. For a complete list of the rules and what they do, see the topology
rules help page.
3. Input Feature class
The input or origin
feature class.
4. Input Subtype (optional)
The subtype for the
input or origin feature class. Enter the subtype's description (not the code).
If subtypes do not exist on the origin feature class, or you want the rule to
be applied to all subtypes in the feature class,
leave this blank.
5. Input Feature class (optional)
The destination feature class for the topology rule.
Create Topology
How to Create Topology Tool in Arc Toolbox ArcMap ArcGIS??
Create Topology
Path to access the tool
:
Create
Topology Tool, Topology Toolset, Data Management Tools Toolbox
Create Topology
Creates a topology. The
topology will not contain any feature classes or rules.
Use the Add Feature
Class to Topology and the Add Rule to Topology tools to add feature classes and
rules to the topology.
1. Input Feature Dataset
The feature dataset in
which the topology will be created.
2. Output Topology
The name of the topology
to be created. This name must be unique across the entire geodatabase.
3. Cluster Tolerance (optional)
The cluster tolerance to
be set on the topology. The larger the value, the more likely vertices will be
to cluster together.
Export Topology Errors
How to Export Topology
Errors Tool in Arc Toolbox ArcMap ArcGIS??
Export Topology Errors
Path to access the tool
:
Export
Topology Errors Tool, Topology Toolset, Data Management Tools Toolbox
Export Topology Errors
Exports the errors from
a geodatabase topology to the target geodatabase. All information associated
with the errors and exceptions, such as the features referenced by the error or
exception, are exported. Once they are exported,
the feature classes can be
accessed using any license level of ArcGIS. The feature classes can be used
with the Select by Location dialog box or the Select Layer By Location tool and
can be shared with other users who do not have access to the topology itself.
1. Input Topology
The topology from which
the errors will be exported.
2. Output Location
The output workspace to
which the feature classes will be created. The default is the workspace where
the topology is located.
3. Base Name
Name to prepend to each output feature class. This allows you to specify unique output names when running multiple exports to the same workspace. The default is the topology name.
