Polyline to Raster

How to use Polyline to Raster Tool in ArcToolbox ArcMap ArcGIS??

Polyline to Raster

Path to access the tool

:

Polyline to Raster Tool, To Raster Toolset, Conversion Toolbox

Polyline to Raster

Converts polyline features to a raster dataset.

1.    Input Features

The polyline input feature dataset to be converted to a raster.

2.    Value field

The field used to assign values to the output raster.

It can be any field of the input feature dataset's attribute table.

3.    Output Raster Dataset

The output raster dataset to be created.

When not saving to a geodatabase, specify .tif for a TIFF file format, .CRF for CRF file format, .img for an ERDAS IMAGINE file format, or no extension for an Esri Grid raster format.

4.    Cell assignment type (optional)

The method to determine how the cell will be assigned a value when more than one feature falls within a cell.

1. MAXIMUM_LENGTH—The feature with the longest length that covers the cell will determine the value to assign to the cell.
2. MAXIMUM_COMBINED_LENGTH—If there is more than one feature in a cell with the same value, the lengths of these features will be combined. The combined feature with the longest length within the cell will determine the value to assign to the cell.

5.    Priority field (optional)

This field is used to determine which feature should take preference over another feature that falls over a cell. When it is used, the feature with the largest positive priority is always selected for conversion irrespective of the Cell assignment type chosen.

6.    Cell size (optional)

The cell size for the output raster being created.

This parameter can be defined by a numeric value or obtained from an existing raster dataset. If the cell size hasn’t been explicitly specified as the parameter value, then the environment cell size value is used if specified; otherwise some additional rules are used to calculate it from the other inputs. See the usage for more detail.

Raster to Other Format (multiple)

How to use Raster to Other Format (multiple) Tool in ArcToolbox ArcMap ArcGIS??

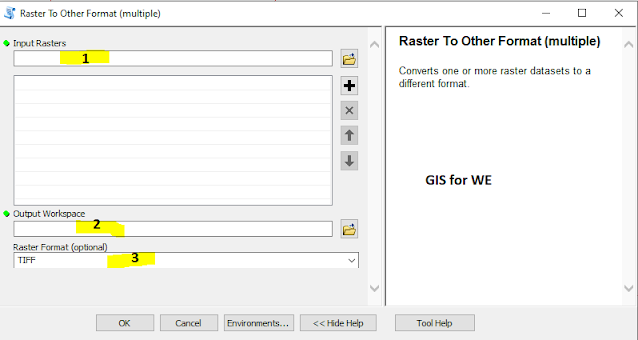

Raster to Other Format (multiple)

Path to access the tool

:

Raster to Other Format (multiple) Tool, To Raster Toolset, Conversion Toolbox



Raster to Other Format (multiple)

Converts one or more raster datasets to a different format.

1.    Input Rasters

The raster datasets to convert.

2.    Output Workspace

The folder where the raster dataset will be written.

3.    Raster Format (optional)

The format of the new raster dataset.

1. BIL—Esri Band Interleaved by Line file
2. BIP—Esri Band Interleaved by Pixel file
3. BMP—Microsoft bitmap graphic raster dataset format
4. BSQ—Esri Band Sequential file
5. CRF—Cloud Raster Format
6. ENVI DAT—ENVI DAT file
7. GIF—Graphic Interchange Format for raster datasets
8. GRID—Esri Grid raster dataset format
9.  IMAGINE Image—ERDAS IMAGINE raster data format
10. JP2000—JPEG 2000 raster dataset format
11. JPEG—Joint Photographic Experts Group raster dataset format
12.  MRF—Meta Raster Format
13. PNG—Portable Network Graphic raster dataset format
14. TIFF—Tagged Image File Format for raster datasets

Feature Class to Shapefile (multiple)

How to use Feature Class to Shapefile (multiple) Tool in ArcToolbox ArcMap ArcGIS??

Feature Class to Shapefile (multiple)

Path to access the tool

:

Feature Class to Shapefile (multiple) Tool, To Shapefile Toolset, Conversion Toolbox



Feature Class to Shapefile (multiple)

Copies the features from one or more feature classes or layers to a folder of shapefiles.

1.    Input Features

The list of input feature classes or feature layers that will be converted and added to the output folder.

2.    Output Folder

The folder where the shapefiles will be written.
