3D Analyst Tools ArcToolbox

Viewshed 2 Tool

How to use Viewshed 2 Tool in ArcToolbox ArcMap ArcGIS ??

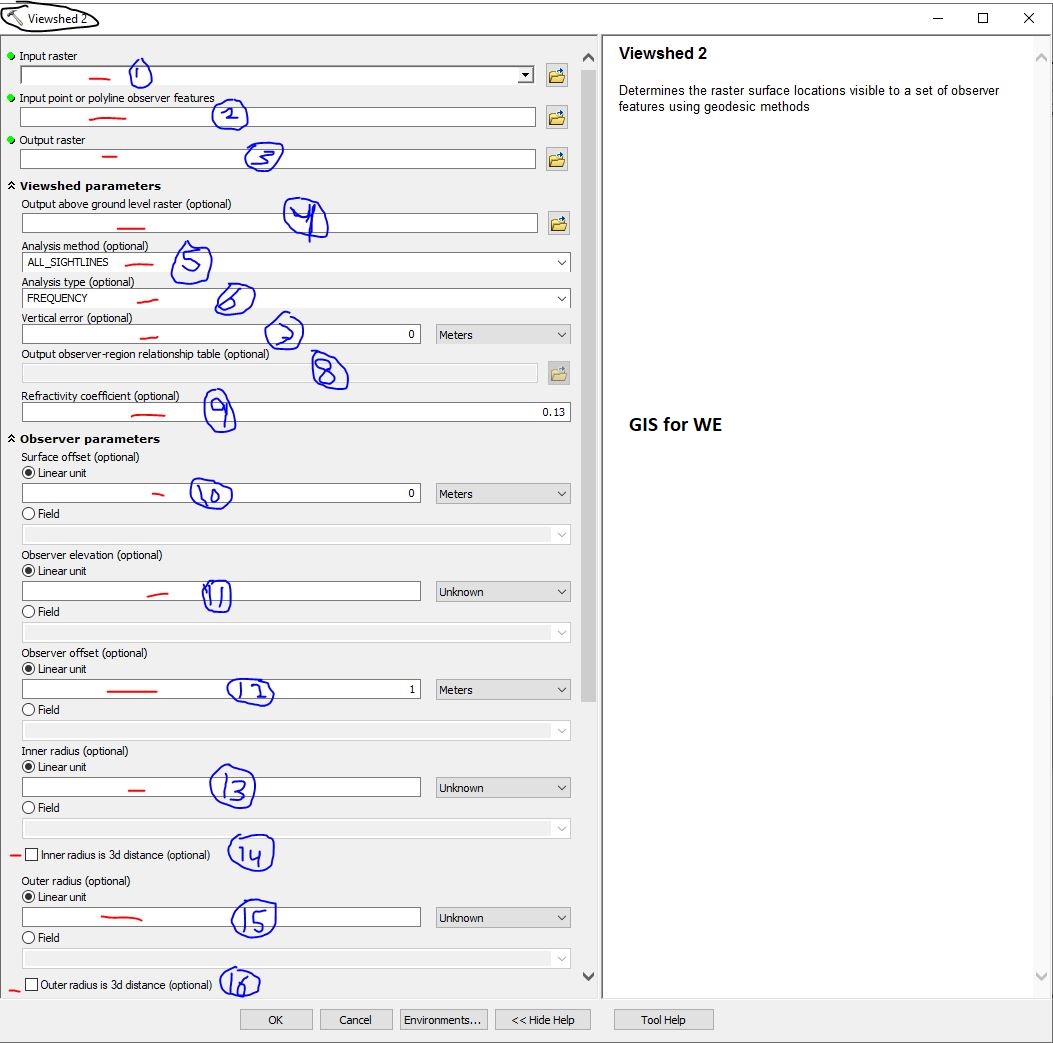

Viewshed 2 Tool

Viewshed 2 Tool

Viewshed 2 Tool, Visibility Toolset, 3D Analyst Toolbox

Viewshed 2

Determines the raster surface locations visible to a set of observer features using geodesic methods

1.    Input raster

The input surface raster. It can be an integer or a floating-point raster.

The input raster is transformed into a 3D geocentric coordinate system during the visibility calculation. NoData cells on the input raster do not block the visibility determination.

2.    Input point or polyline observer features

The input feature class that identifies the observer locations. It can be point, multipoint, or polyline features.

The input feature class is transformed into a 3D geocentric coordinate system during the visibility calculation. Observers outside of the extent of the surface raster or located on NoData cells will be ignored in the calculation.

3.    Output raster

The output raster.

For the FREQUENCY analysis type, when the vertical error parameter is 0 or not specified, the output raster records the number of times that each cell location in the input surface raster can be seen by the input observation points. When the vertical error parameter is greater than 0, each cell on the output raster records the sum of probabilities that the cell is visible to any of the observers. For the OBSERVERS analysis type, the output raster records the unique region IDs for the visible areas, which can be related back to the observer features through the output observer-region relationship table.

4.    Output above ground level raster (optional)

The output above ground level (AGL) raster.

The AGL result is a raster where each cell value is the minimum height that must be added to an otherwise nonvisible cell to make it visible by at least one observer. Cells that were already visible will be assigned 0 in this output raster.

When the vertical error parameter is 0, the output AGL raster is a one-band raster. When vertical error is greater than 0, to account for the random effects from the input raster, the output AGL raster is created as a three-band raster. The first band represents the mean AGL values, the second band represents the minimum AGL values, and the third band represents the maximum AGL values.

5.    Analysis method (optional)

Choose the method by which the visibility will be calculated. This option allows you to trade some accuracy for increased performance.

· ALL_SIGHTLINES—A sightline is run to every cell on the raster in order to establish visible areas. This is the default method.

· PERIMETER_SIGHTLINES—Sightlines are only run to the cells on the perimeter of the visible areas in order to establish visibility areas. This method has a better performance than the ALL_SIGHTLINES method since less sightlines are run in the calculation.

6.    Analysis type (optional)

Choose which type of visibility analysis you wish to perform, either determining how visible each cell is to the observers, or identifying for each surface location which observers are visible.

· FREQUENCY—The output records the number of times that each cell location in the input surface raster can be seen by the input observation locations (as points or as vertices for polyline observer features). This is the default.

· OBSERVERS—The output identifies exactly which observer points are visible from each raster surface location. The allowed maximum number of input observers is 32 with this analysis type.

7.    Vertical error (optional)

The amount of uncertainty (the Root Mean Square error, or RMSE) in the surface elevation values. It is a floating-point value representing the expected error of the input elevation values. When this parameter is assigned a value greater than 0, the output visibility raster will be floating point. In this case, each cell value on the output visibility raster represents the sum of probabilities that the cell is visible to any of the observers.

When the analysis type is OBSERVERS or the analysis method is PERIMETER_SIGHTLINES, this parameter is disabled.

8.    Output observer-region relationship table (optional)

The output table for identifying the regions that are visible to each observer. This table can be related to the input observer feature class and the output visibility raster for identifying the regions visible to given observers.

This output is only created when the analysis type is OBSERVERS.

9.    Refractivity coefficient (optional)

Coefficient of the refraction of visible light in air.

The default value is 0.13.

10. Surface offset (optional)

This value indicates a vertical distance to be added to the z-value of each cell as it is considered for visibility. It should be a positive integer or floating-point value.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset. The default value is 0.

11. Observer elevation (optional)

This value is used to define the surface elevations of the observer points or vertices.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is not specified, the observer elevation will be obtained from the surface raster using bilinear interpolation. If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset.

12. Observer offset (optional)

This value indicates a vertical distance to be added to the observer elevation. It should be a positive integer or floating-point value.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset. The default value is 1 meter.

13. Inner radius (optional)

This value defines the start distance from which visibility is determined. Cells closer than this distance are not visible in the output but can still block visibility of the cells between inner radius and outer radius.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset.

The default value is 0.

14. Inner radius is 3d distance (optional)

Type of distance for the inner radius parameter.

· Unchecked—Inner radius is to be interpreted as a 2D distance. This is the default.

· Checked—Inner radius is to be interpreted as a 3D distance.

15. Outer radius (optional)

This value defines the maximum distance from which visibility is determined. Cells beyond this distance are excluded from the analysis.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset.

16. Outer radius is 3d distance (optional)

Type of distance for the outer radius parameter.

· Unchecked—Outer radius is to be interpreted as a 2D distance. This is the default.

· Checked—Outer radius is to be interpreted as a 3D distance.

17. Horizontal start angle (optional)

This value defines the start angle of the horizontal scan range. The value should be specified in degrees from 0 to 360, either as integer or floating point, with 0 oriented to north. The default value is 0.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset.

18. Horizontal end angle (optional)

This value defines the end angle of the horizontal scan range. The value should be specified in degrees from 0 to 360, either as integer or floating point, with 0 oriented to north. The default value is 360.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset.

19. Vertical upper angle (optional)

This value defines the upper vertical angle limit of the scan relative to the horizontal plane. The value is specified in degrees, and can be integer or floating point. The allowed range is from above -90 up to and including 90.

The value for this parameter must be greater than the Vertical Lower Angle parameter.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset.

The default value is 90 (straight up).

20. Vertical lower angle (optional)

This value defines the lower vertical angle limit of the scan relative to the horizontal plane. The value is specified in degrees, and can be integer or floating point. The allowed range is from -90 up to (but not including) 90.

The value for this parameter must be less than the Vertical Upper Angle parameter.

You can select a field in the input observers dataset, or you can specify a numerical value.

If this parameter is set to a value, that value will be applied to all the observers. To specify different values for each observer, set this parameter to a field in the input observer features dataset.

The default value is -90 (straight down).
